Therapy couch Praktika Basic - electric

Practika Basic Therapy Couch - electric

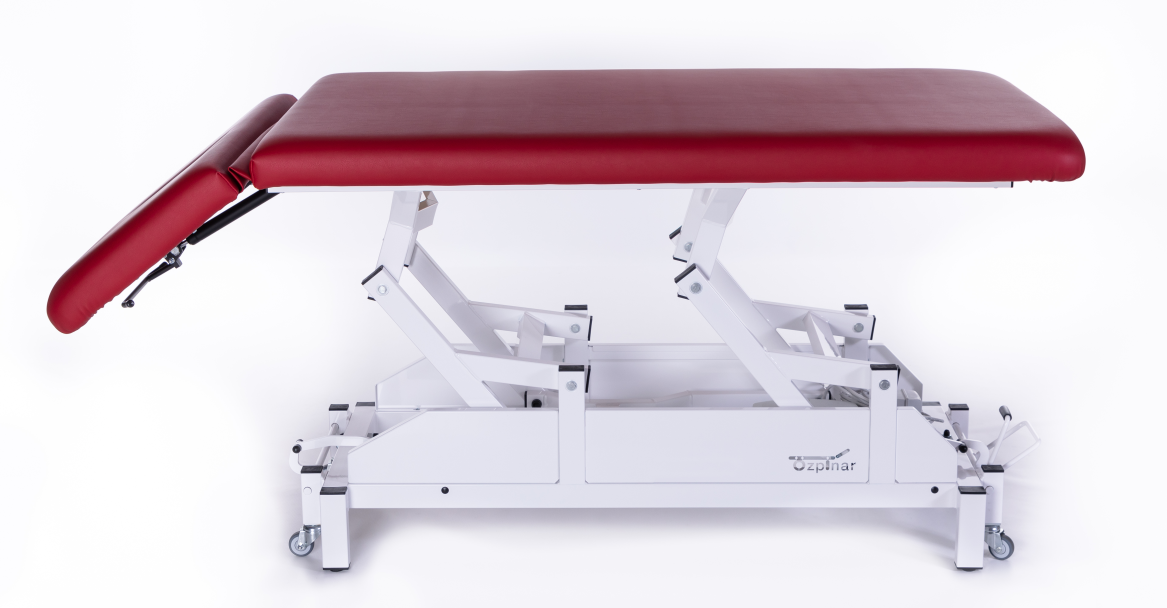

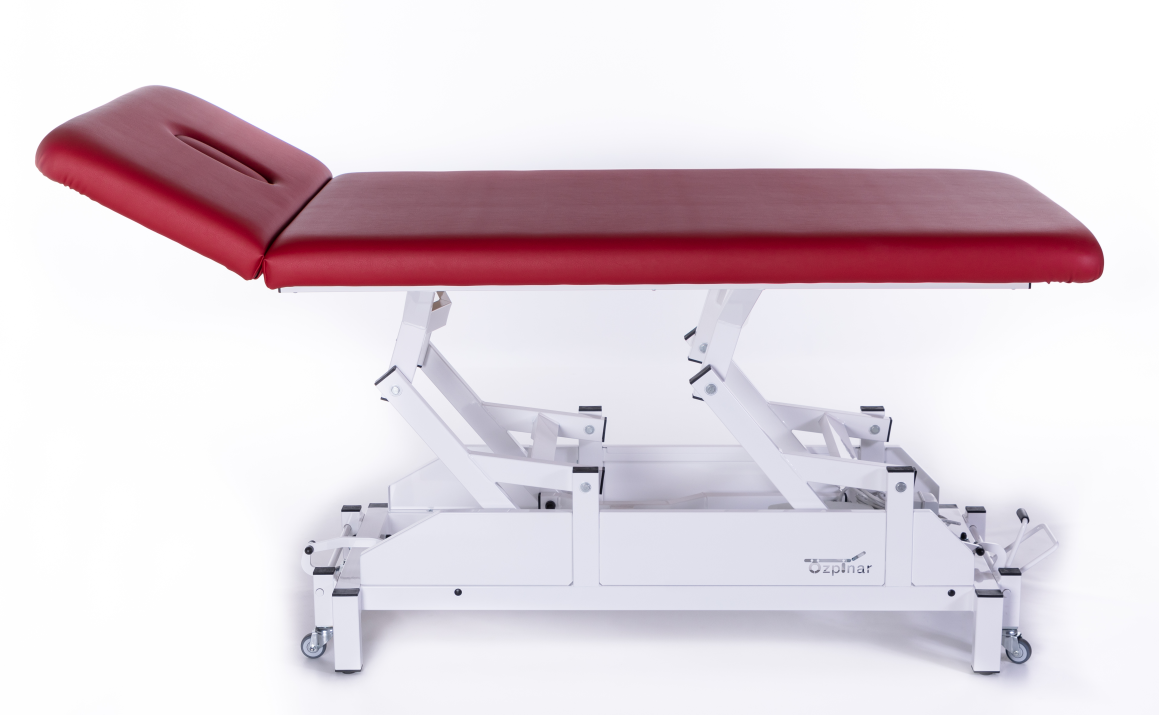

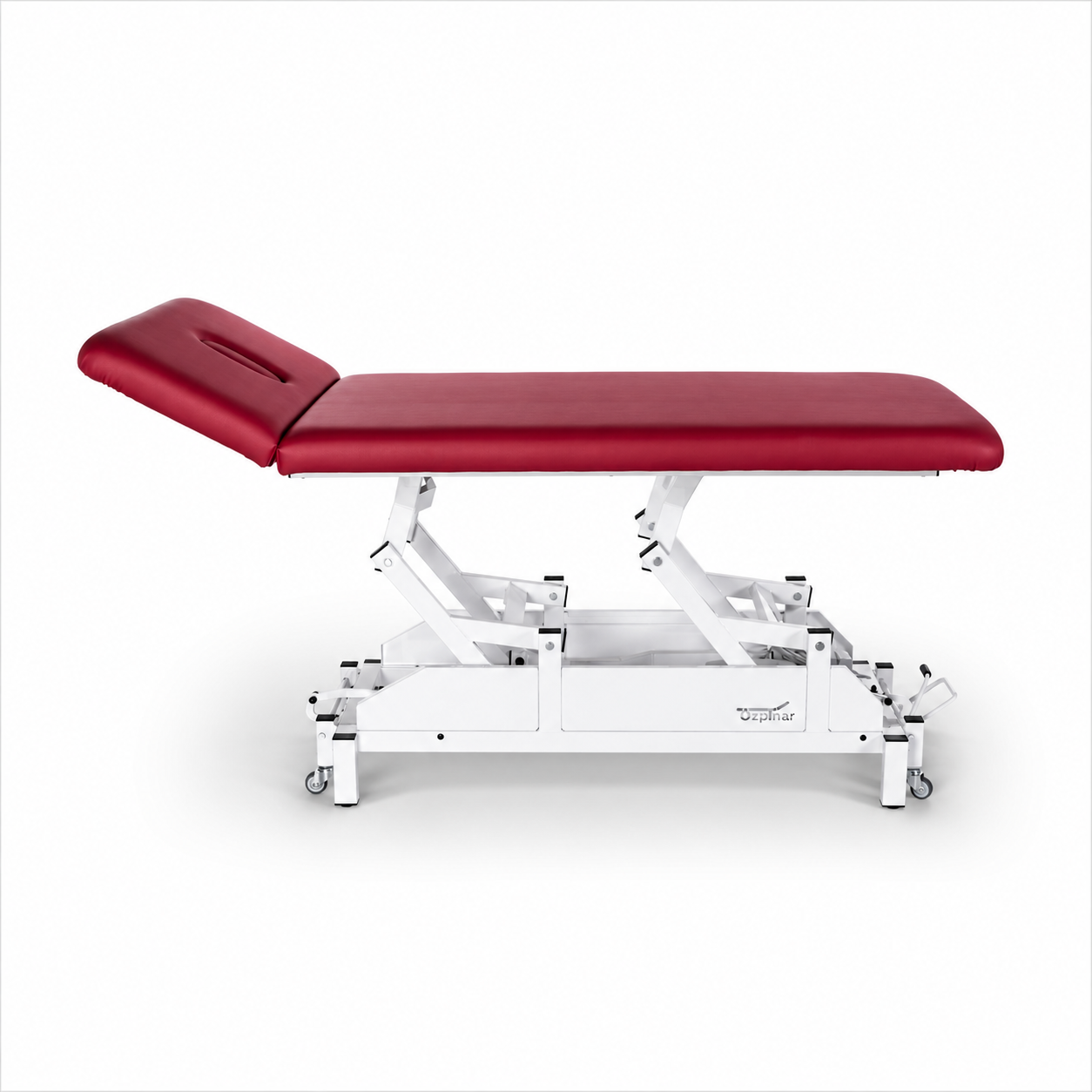

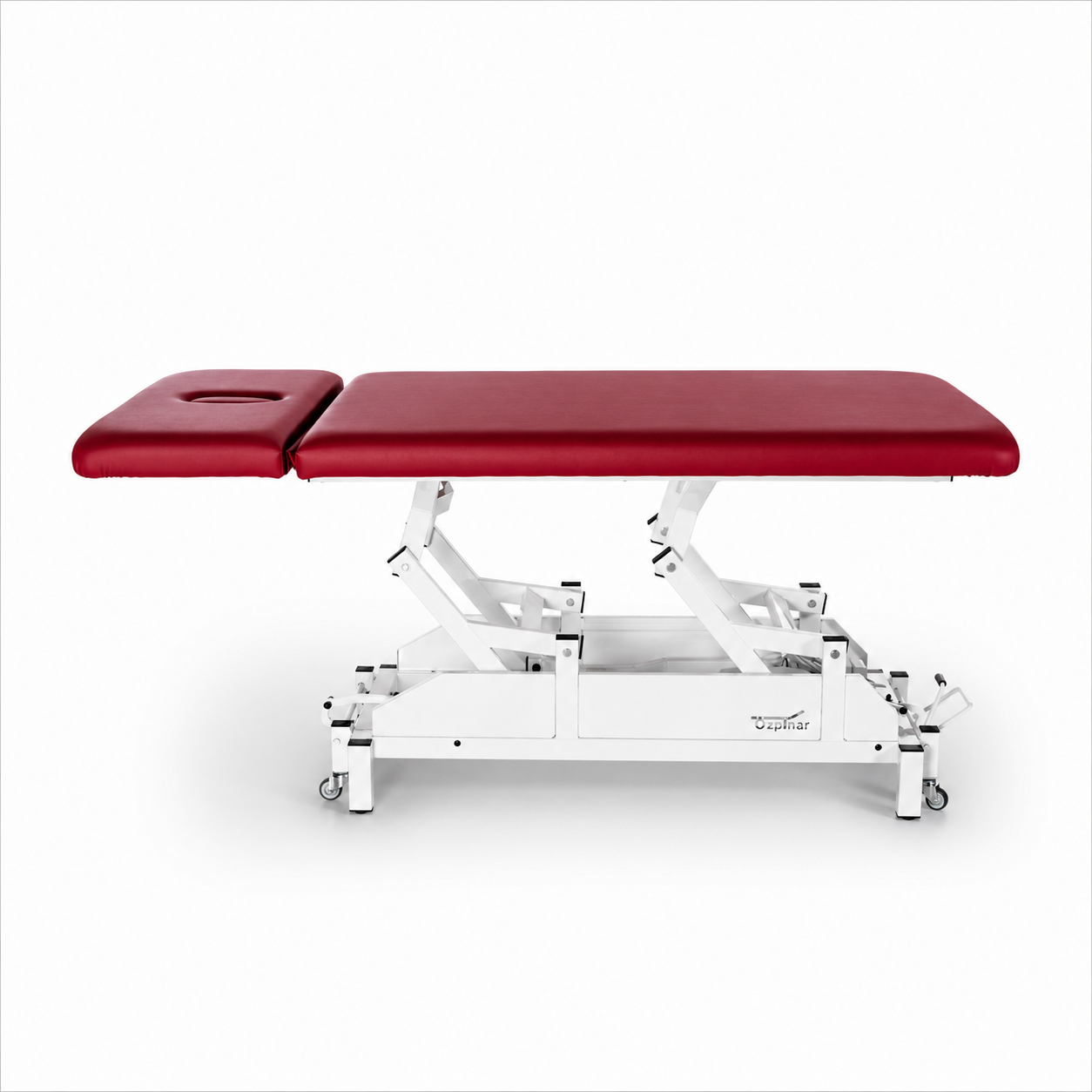

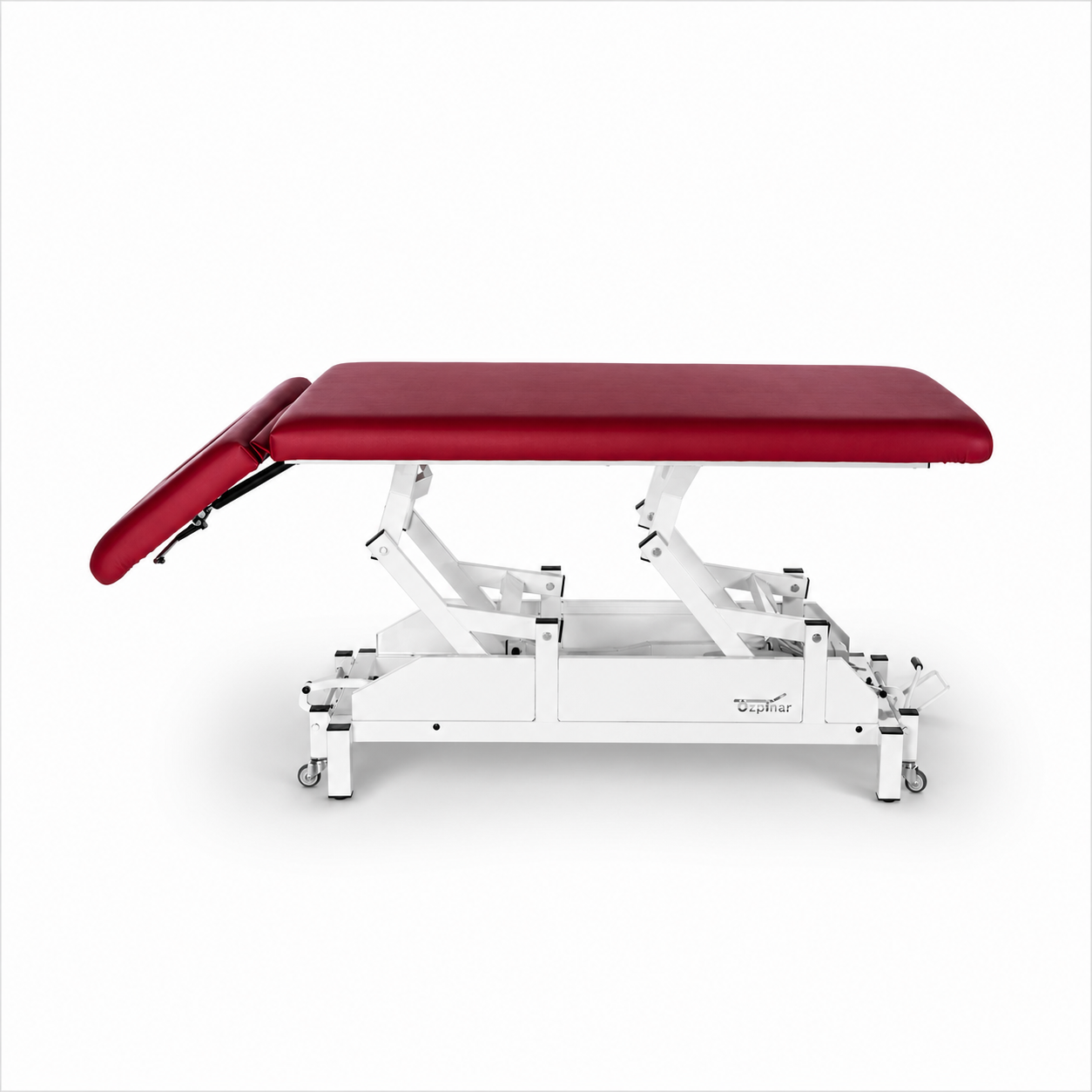

The Practika Basic electric therapy couch is a 2-section couch, consisting of a body and a head section. It is available in several widths (65, 70, 75, 80 cm) and, upon request, with a 3-section head section. The head section is continuously adjustable from 37° (positive) to 54° (negative) using a gas spring.

The lying surface is continuously adjustable in height from approx. 50-104 cm. Height adjustment is performed by an electric motor from the manufacturer Linak®, which, in the basic configuration, is activated via a wireless hand control (hand switch).

Basic Equipment

• Two-section lying surface 195 x 65 cm
• Frame in RAL 9003 white
• Height adjustment from approx. 50-104 cm
• One-piece head section with nose slot and nose insert
• Height adjustment via wireless hand control
• Switchable castor frame

Optional equipment variants at extra cost

• Lying surface 70, 75 or 80 cm
• Softer upholstered lying surface 1 cm, 2 cm or 3 cm
• Comfort head section incl. nose cushion and cover to close the opening
• Three-piece head section (Fix / Flex)
• Special head section
• Treatment set 1 = 2 insert sockets in the shoulder area and 1 fixing horn
• Treatment set 2 = 3 insert sockets mounted in the upholstery and 1 fixing horn
• Side rails 1080 mm
• Roll holder (with 1-piece head section or at the foot section)
• Extension gallows
• Fixing rail
• All-round bar
• Wireless foot switch
• Foot switch with cable
• Hand switch with cable
• Or as a combination:
• All-round bar with wireless hand/foot switch (Bluetooth)
• Wired hand switch with wireless hand/foot switch (Bluetooth)
• Wired foot switch with wireless hand/foot switch (Bluetooth)

Note: combinations of different control elements are only possible with the initial order, i.e. NOT retrofittable.

Protection against accidental operation due to integrated blocking function

To prevent unauthorized or accidental operation of the couch adjustment with risk of injury, our couches are equipped with an integrated blocking function. This means that the electrical adjustment options are automatically deactivated 15 seconds after the last operation of the control elements (hand switch, foot switch or all-round bar). They can then only be operated again once you unlock the blocking function.

The activation and deactivation of the blocking function is confirmed by a beep.

In addition, the couch is equipped with an automatic motion stop to protect against crushing or shearing hazards. This automatically interrupts the lowering of the lying surface after 10 seconds. If you want to lower the couch further, simply operate the control element again.

Important note

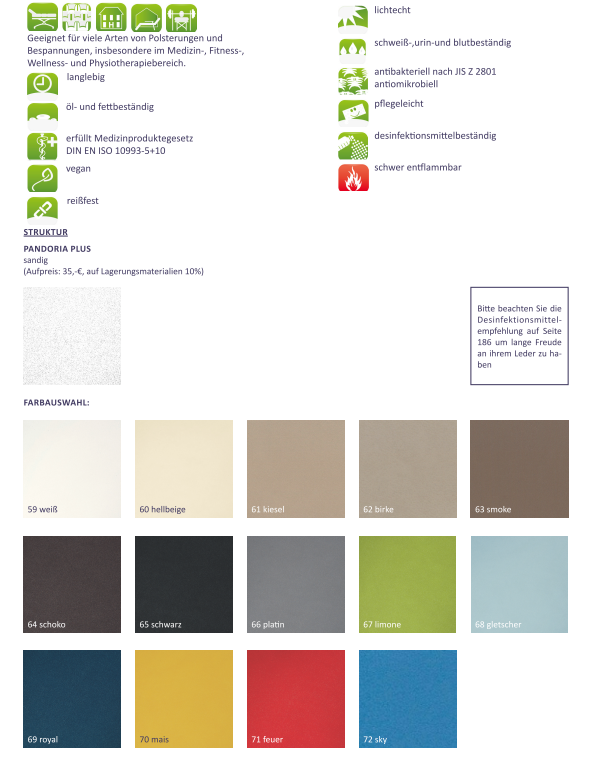

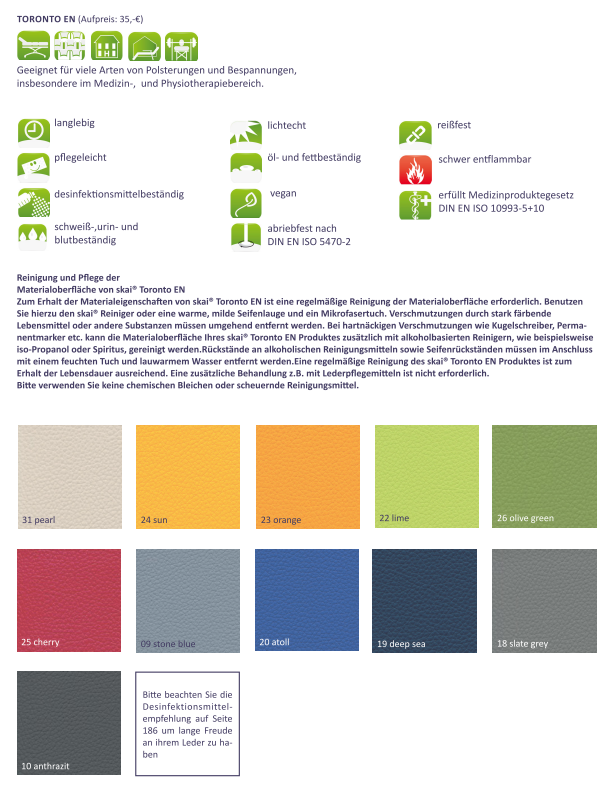

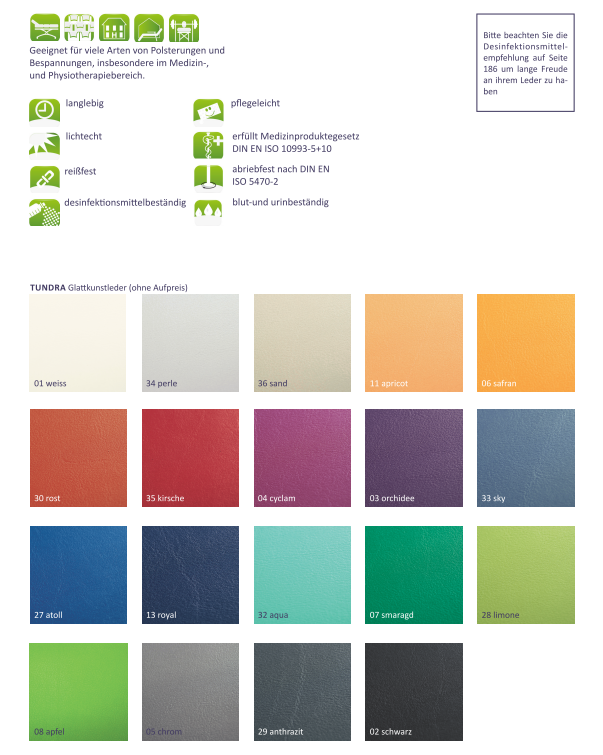

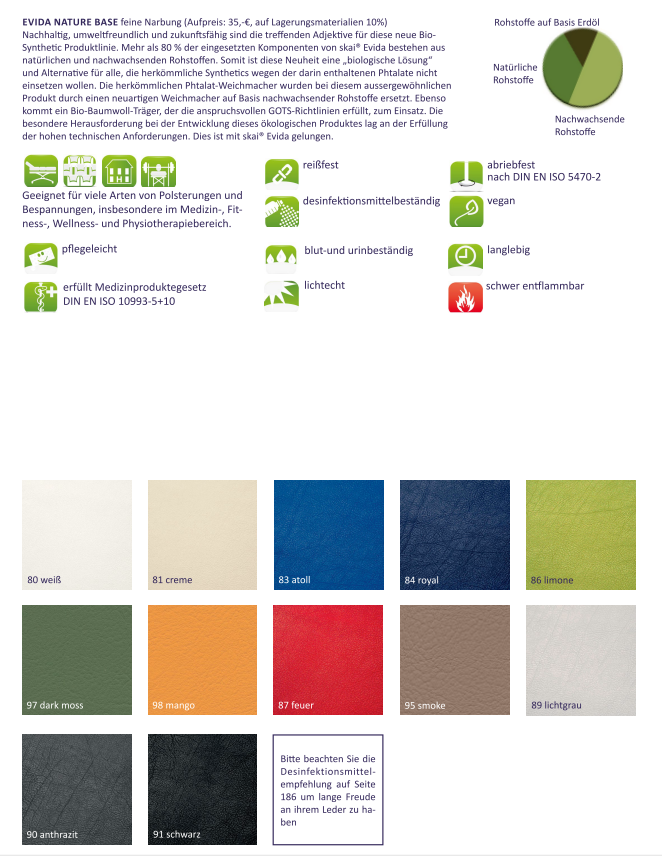

If you have other color preferences, please specify them in the order notes
