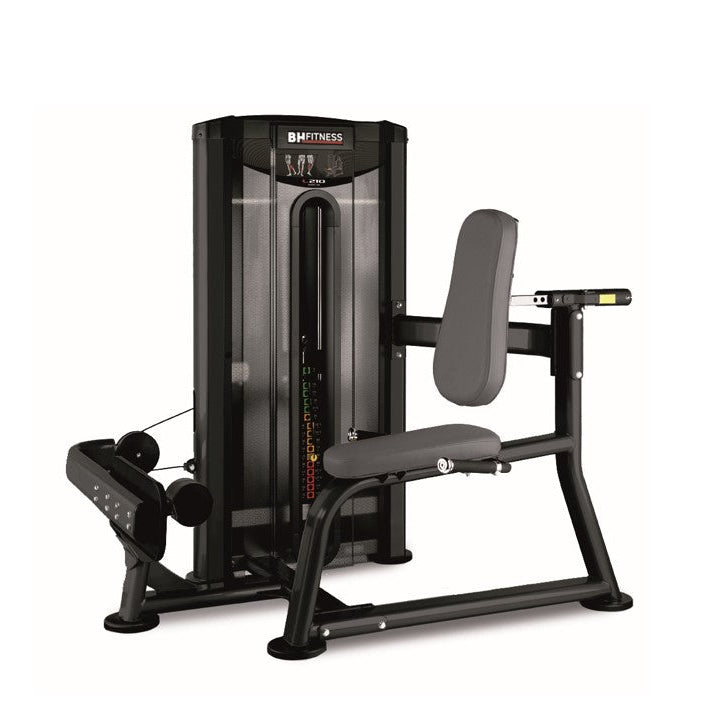

BH Fitness® Calf Machine L210B

The L210B Calf Machine adds a highly developed strength training device to the professional Inertia series by BH Fitness, specifically designed for continuous heavy use in gyms, sports clubs, and medical rehabilitation. The station combines first-class workmanship quality and enormous durability with a modern, aesthetic design language.

This specialized device enables highly effective, isolated training of the entire lower leg musculature. Thanks to scientifically proven biomechanics, the movement sequence perfectly adapts to natural anatomy, ensuring targeted stimulation of the gastrocnemius and soleus muscles with maximum joint protection.

Highlights & Advantages

• Ergonomic adjustment: The continuously length-adjustable backrest ensures precise alignment for every body size and requirement.
• High protection standards: Robust polycarbonate covers shield the weight stack front and rear, reliably preventing intervention during training.
• Intuitive handling: Conspicuously yellow-marked control elements and a magnetic plate selector allow convenient load adjustment directly from the seated position.
• Three-color scaling: The weight guide, divided into three color areas, supports quick visual assessment of training intensity.
• Hygienic injection-molded seat: Ergonomically shaped upholstery with an injected core and flame-retardant cover according to M2 standard effectively counteracts bacterial growth.
• Smart-Focus function: The system can optionally be digitally upgraded with a 10″ 4K LCD console including RFID access, tutorials, and performance analysis.

Training Options

• Seated Calf Raise: Classic, guided calf extension for deep activation of the soleus muscle (M. soleus).
• Dynamic Ankle Flexion: Controlled movements through the full range of motion to strengthen the shin and foot-lifting muscles.
• Isometric Holds: Static holding exercises at maximum contraction to increase tendon strength and ankle stability.

Features & Technical Data

• Dimensions (L x W x H): 164.8 × 112.5 × 148.5 cm
• Device Weight: 227.8 kg
• Weight Stack / Pin-Loaded System: 110 kg weight magazine with magnetically secured selector pin at working level.
• Frame Construction: 3 mm thick ST-37/40 quality steel frame with elliptical tubes and three-layer anti-corrosion coating.
• Ground Clearance: The frame, raised by 50 mm with adjustable damper rubber feet, protects the floor and facilitates cleaning.
• Cable Mechanism & Smooth Operation: 5 mm thick, sheathed steel cable and optimized steel guides with Dryl bushings guarantee low-friction, quiet operation.
• Instructional Panel: Integrated graphic panel shows the correct exercise execution and the muscles used at a glance.

Scope of Delivery & Accessories

• 1 × BH Fitness L210B Calf Machine, incl. weight stack (110 kg)
• Item Number: MS-L210B
